Kit Contents:

T40 x 1
T40 Battery x 2
T40 Charger x 1
2600W Cable x 2

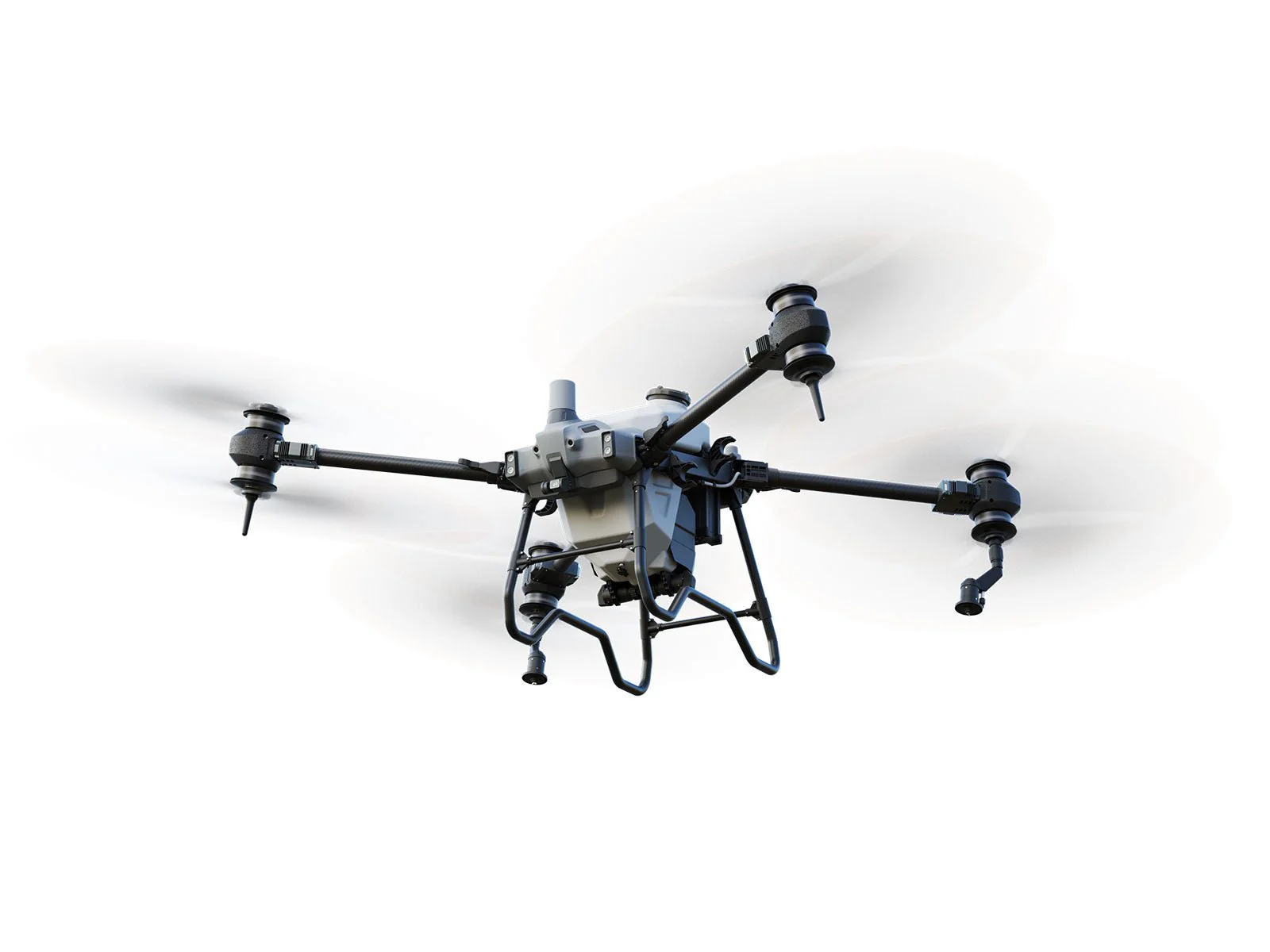

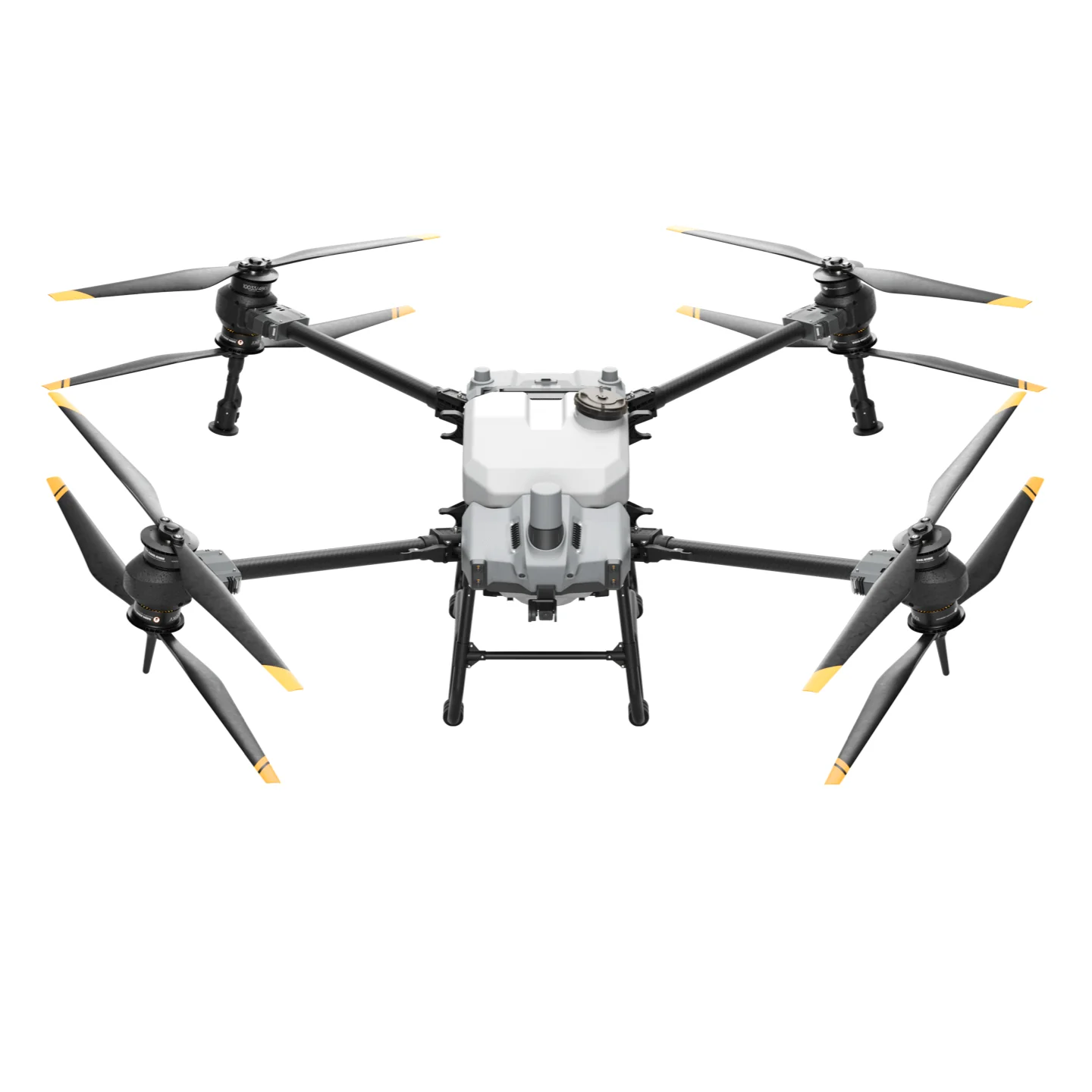

The AGRAS T40 can handle spread loads of 50 kg and 40 kg, respectively, thanks to its revolutionary Coaxial Twin Rotor design. The aircraft is equipped with a Dual Atomized Spraying System, DJI Terra, Active Phased Array Radar, and Binocular Vision. It supports a range of tasks, such as surveying, mapping, spraying, and spreading, to help you achieve the highest level of precision in your agricultural operations.

Large Payload Capacity

The coaxial twin rotor design of the AGRAS T40 increases payload capacity by 30% and has a maximum payload of 50 kg. The aircraft can be more easily transported because to its folding design, which reduces its size by 70%.

The Agras T40 can cover up to 21.3 hectares of farmland or 4 hectares of orchard area every hour because to its lengthy flying time and huge payload capacity.

Magnetic Drive Impeller Pump

The innovative magnetic transmission system completely separates the chemical from the motor, making the aircraft corrosion- and ultra-resistant. Simple manual disassembly for cleaning.

Dual Atomized Centrifugal Sprinkler

The dual atomized spray disc ensures even droplets and more efficient pesticide usage.
The environmentally friendly, leak-proof, and unique centrifugal valve reduces pesticide usage while avoiding overfertilization and reducing leaks.

Spreading System

Spreading fertilizer and seeds for cover crops is more efficient with the Agras T40. It has an 18.5-gallon spreader tank with a capacity to contain 115 pounds or more of granular material. The aircraft's weight sensor maintains tabs on the spread volume and remaining cargo. The spreading mechanism is easily dismantled for cleaning and is water-washable.

Omnidirectional Obstacle Avoidance

The best level of security is provided by the binocular vision sensor system's integration with the Active Phased Array Radar, which enables 360-degree horizontal omnidirectional obstacle sensing.

The sensing range of up to 50 m enables intelligent terrain tracking, smooth scaling, and multiple obstacle avoidance.

Integrated features

The AGRAS T40 has integrated mapping, spraying, and spreading capabilities. Its UHD camera and adjustable gimbal make it simple to capture any desired angle. Real-time images of farms and orchards may be taken using the remote controller with the D-RTK 2 Mobile Station, and local maps can be made. The system detects land boundaries and barriers automatically, making it simpler to plot flying trajectories over sloping orchards and farms.

Remote Controller

The improved remote controller for the DJI Agras T40 has cutting-edge functionality. The 8-core CPU allows for the mapping of 6.67 hectares of land in 10 minutes. avoids wasteful travel by carefully designing a route for greater efficiency.

A broader viewpoint with sharper detail is offered by the large 7-inch screen's high brightness. A wide range of unique physical buttons provide flexible control.

Fast Charging

a 12000W multifunctional inverter generator that employs cutting-edge EFI technology and consumes 15% less fuel. The remote controller, water pump, reloader, lights, and other devices may all be powered by the charging station's 1500W AC output, together with other devices. The 30000mAh Intelligent Flight Battery has a regular air-cooled heat sink that allows it to cool down quickly.
